Pole System Glass Frail

Top Fleet’s Pole System Glass Rack is the Ultimate in Glass Transport….

Pole – Glass Transport System

These aluminium external glass frails are designed to transport glass units or shop fronts on the side of any commercial vehicle. The racks can be fitted to either or both sides of the vehicle. As standard the system is supplied with spring loaded poles, safety marker boards and a half width roof rack. All Top Fleet Racks have fantastic load capacity and are stamped with a SWL. You can be sure our glass racks are always up to the job! This type of rack is perfect for a Shop front Fitter or Window Replacement Company. The system firmly grips the glass to the high quality aluminium & rubber rack with aluminium spring-loaded poles with rubber grip blocks. The blocks on the pole can be positioned to clamp glass securely against the rack. This will ensure that the glass will reach its destination in perfect condition.

Spring Loaded Poles

Our glass transport systems are supplied with spring loaded poles. This securing method is tried and tested as the safest method of carrying glass. The rubber blocks on the pole vary in thickness and slide into position for a fantastic grip.

Rack Protector System

This unique component was developed by Top Fleet in 2010 and is now fitted as standard to all our racks. The Rack Protector System means that a small bump needn’t mean expensive repairs to your rack, and that your trousers will be saved in the event of a leg-rack collision.

Safety Marker Boards

Safety marker boards are designed to be fully removable by the release of a thumbscrew for easy storage when not in use. These marker boards alert other road users of the extra width of your vehicle and hazardous load. In the event of sudden braking they will help contain the load should there be material movement.

Telescopic Glass Frail Option

We are able to offer a glass frail that can adapt to whatever size glass you need to transport. The picture above shows the system is installed onto a Ford Transit. In compact mode the system will carry glass up to 3200mm x 2600mm and when extended it can transport glass up to 3200mm x 3300mm with a SWL of 350 kgs.

Inclinometer (Optional)

A very useful piece of kit to enable you to see the angle of the frail before you load or unload your glass.

Pole Rest (Optional)

Does just what it says. This addition allows you to rest the spring loaded poles on the rack whilst loading and unloading the glass. The pole rest saves your back and prolongs the life of the poles by keeping them off the floor.

Dual Glass Rack Pole System

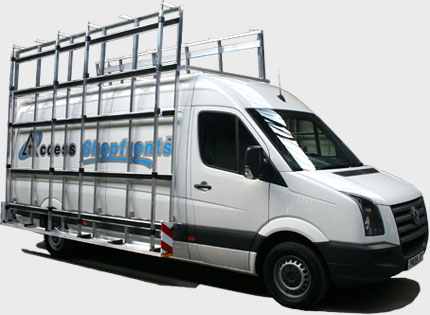

If you specialise in glass delivery or install shop fronts you may need a Pole System glass frail on both sides of your vehicle. This is an example of a Volkswagen Crafter installed with dual 4000mm x 2850mm glass racks complete with full width roof rack. Each rack has a SWL of 350 kgs but remember that UK law allows no more than 10% of GVW to be transported on the outside of your vehicle.

All Top Fleet racks have fantastic load capacity and are stamped with a SWL. You can be sure our glass racks are always up to the job! This type of rack is perfect for a shop front fitter or window replacement company. The system firmly grips the glass to the high quality aluminium & rubber rack with aluminium spring-loaded poles with rubber grip blocks. The blocks on the pole can be positioned to clamp glass securely against the rack. This will ensure that the glass will reach its destination in perfect condition.

Watch our Glazing Vans in Action...

Glass Rack Summary

  • 3 year / 100,000 mile Warranty
  • Independently Safety Tested
  • Corrosion Resistant Mill Finish
  • Safety Certificate plus Handbook
  • Vehicle Height Information Sticker in Cab
  • Rack Protector System
  • 2 Hr Fast Fit Service*

Options Available

  • Factory or On site Installation*
  • Folding Ledge on External Glass Racks
  • Inclinometer
  • Safety Marker Boards
  • Roto Blocks
  • Tool Storage
  • Not penetrating fixing methods
  • Bespoke Systems Built to your exact requirements
  • Variety of Accessories, Ladders, Lighting, etc…
  • Fascia Roof Racks
  • Internal Racking
  • Anodising or Powder Coating to any RAL Colour
